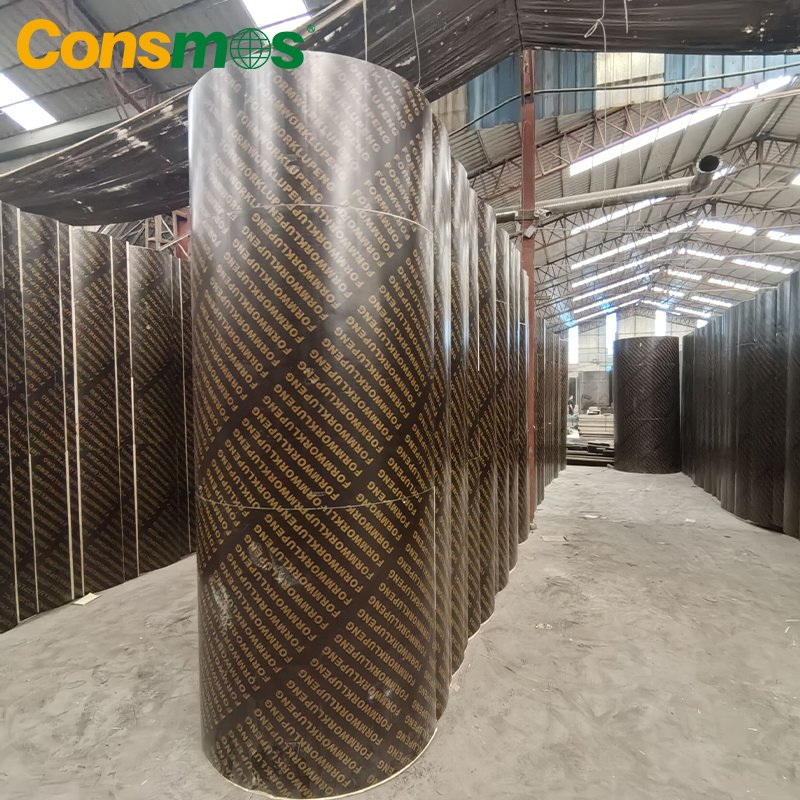

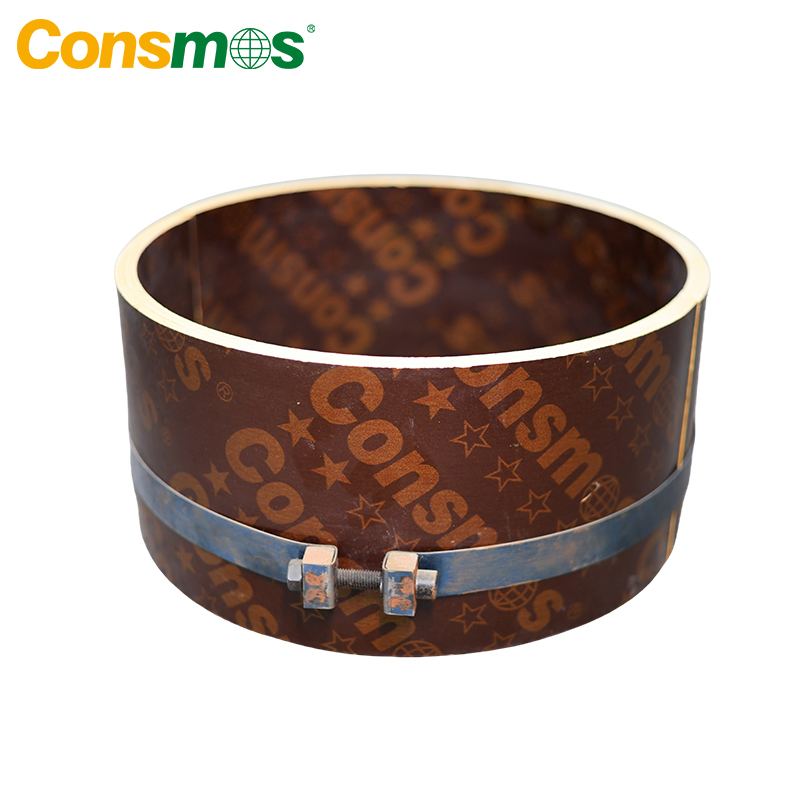

Flexible Circular Column Formwork System Laminated Cylindrical Film Faced Plywood for Construction

Still deciding? Get samples of $ !
Request Sample

Product Description

📋

Basic Product Information

Material
Poplar
Grain
Straight Grain
Bonding Strength
Ⅲ(Nc)
Plywood Type
13-Ply
Emission Standard
E0
Grade
Excellent Grade
Usage
Outdoor
Thickness
12-22mm
Face/Back
Brown Film, Black Film, Red Film
Glue Type
Melamine, WBP/Phenolic
Application
Concrete Forming of Circular Column
Capacity
10000m³/Month
🏗️

Product Description

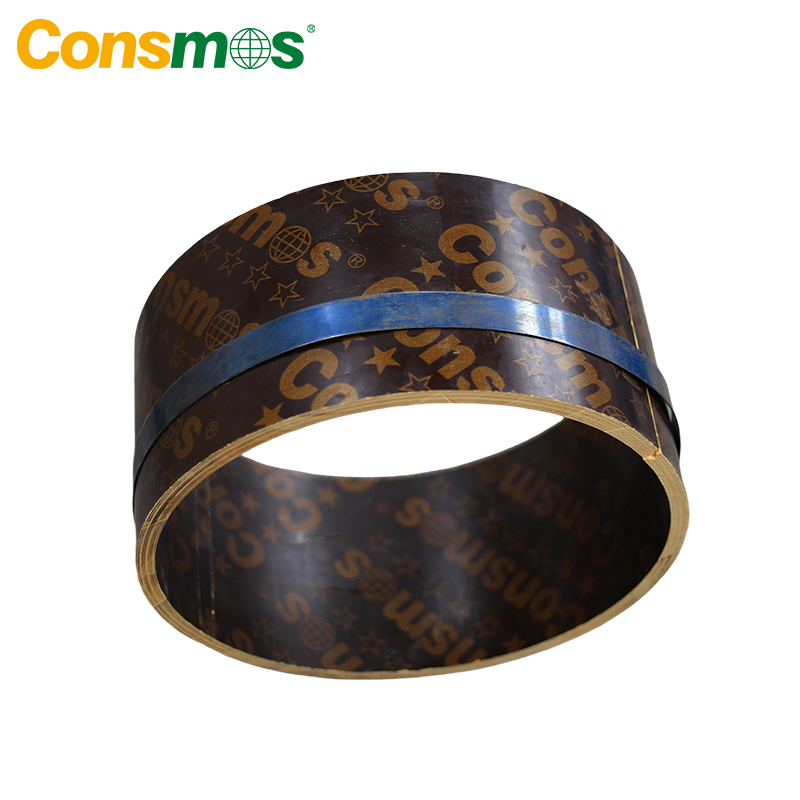

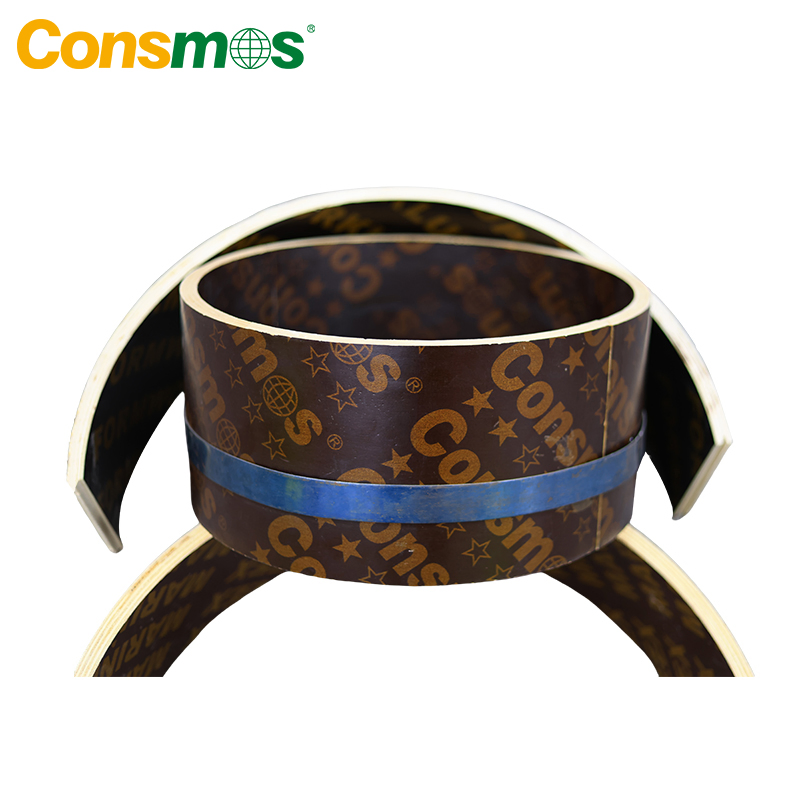

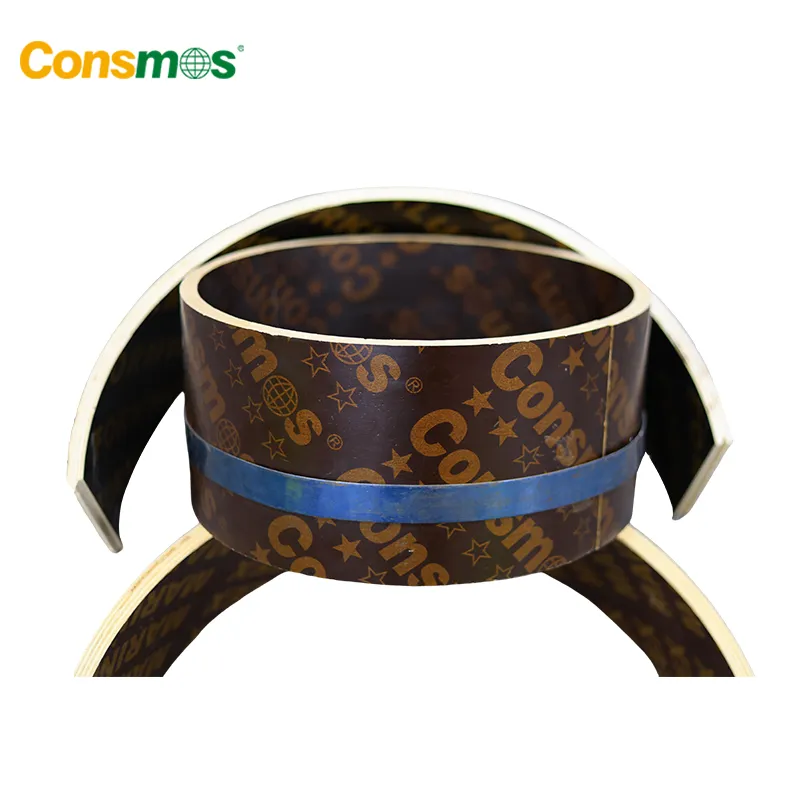

Cylindrical Wood Formwork
Cylindrical wood formwork is a new formwork material in the field of construction engineering technology. It uses high-quality birch and poplar as the main material, and uses high-quality phenolic glue as the adhesive, after single-sided hot pressing, double-sided over molding. This formwork utilizes the flexibility of wood plywood and achieves different curvatures through high-temperature and high-pressure molding to produce cylindrical formwork with various diameters. The unique concave-convex groove design at the formwork interface makes the joints tightly joined to prevent the slurry from running out and leaking, ensuring concrete demoulding is fast and beautiful.
Inner diameter Formwork thickness Length Composition pieces
200~550mm12~14mm3000mm2
600~1200mm17~18mm3000mm2
1250~1500mm20~22mm3000mm2
1550~2200mm20~22mm3000mm4
2250~2600mm20~22mm2400mm5
2650~4400mm20~22mm2000mmArc length 1200mm
🖼️

Product Display & Application

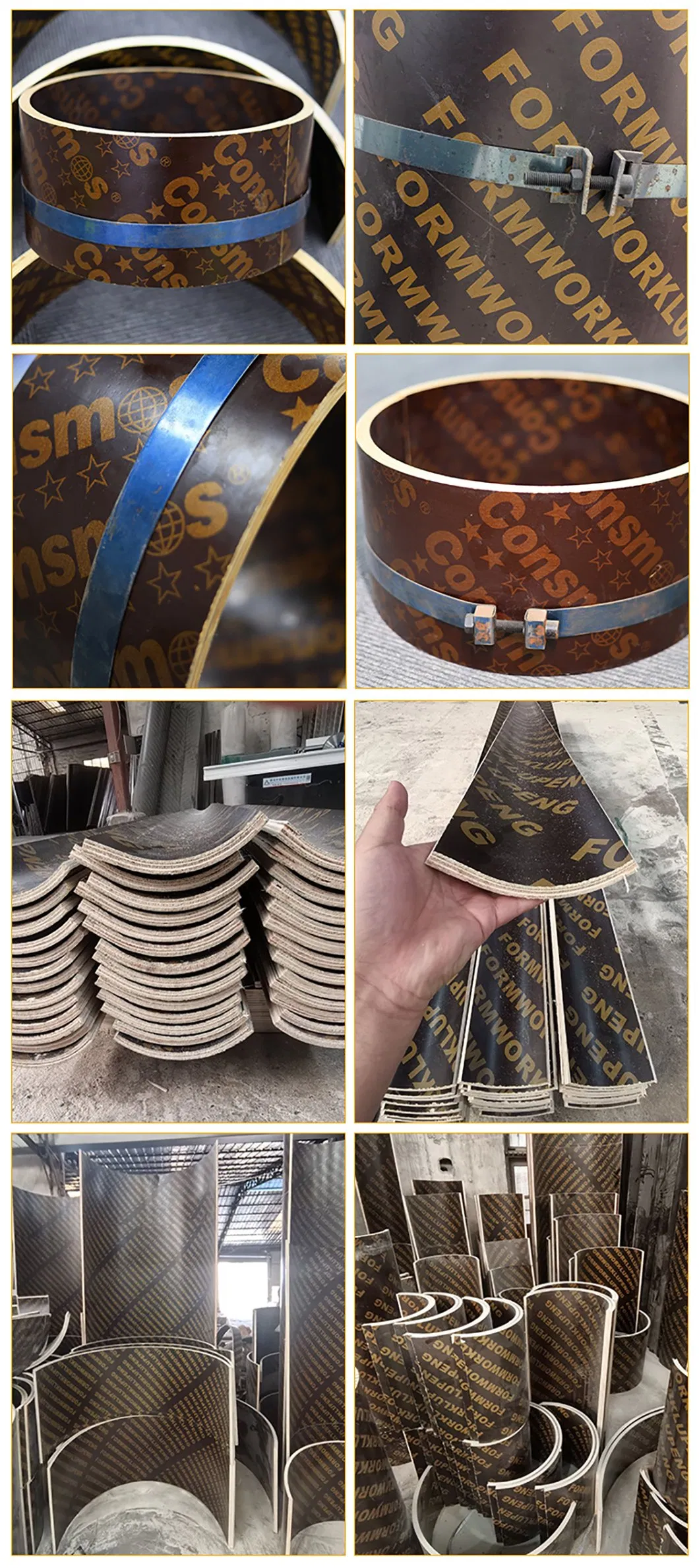

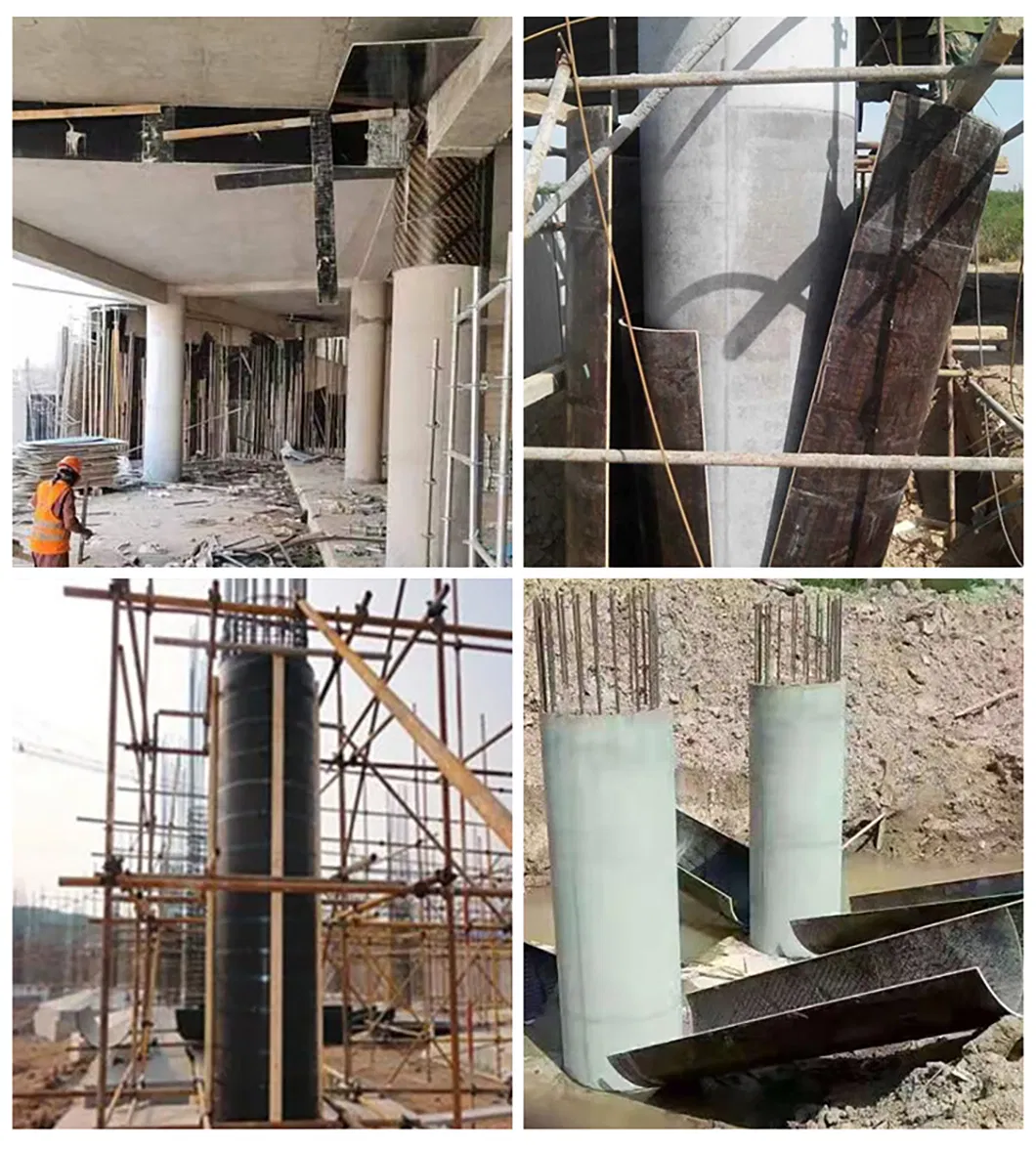

Display 1 Application 1
🏭

Production Capability

Founded in 2006, our wood group focuses on producing high quality plywood for construction and furniture with CE, CARB, FSC, and ISO9001 certification. Our main products include 100% Full Birch plywood, Commercial plywood, Film faced plywood, Marine plywood, OSB board, and LVL. With a yearly output of 300,000 cubic meters, we serve markets in Europe, Australia, Middle East, Latin America, and Southeast Asia.

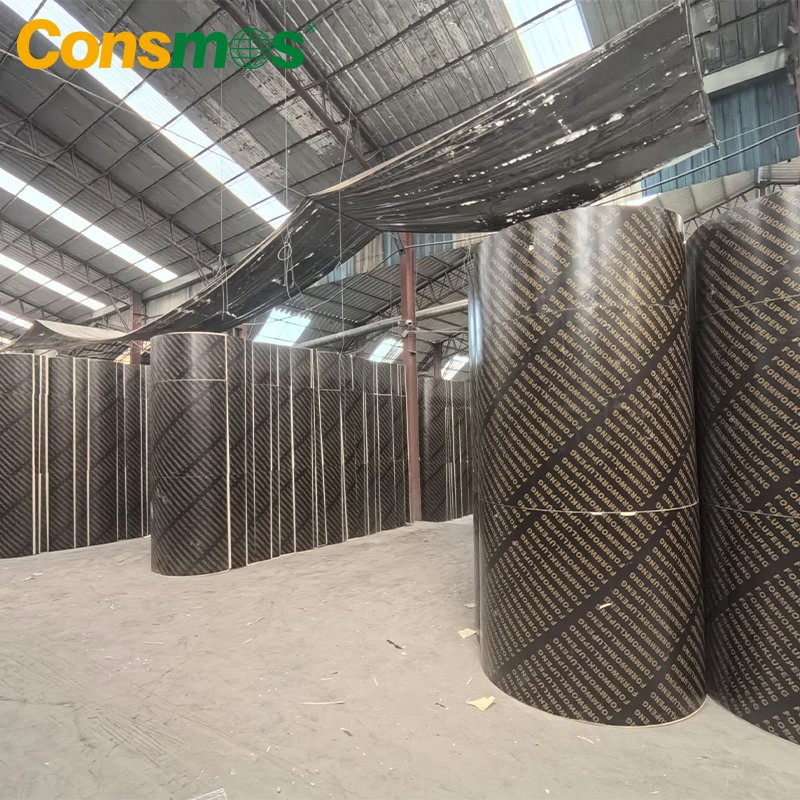

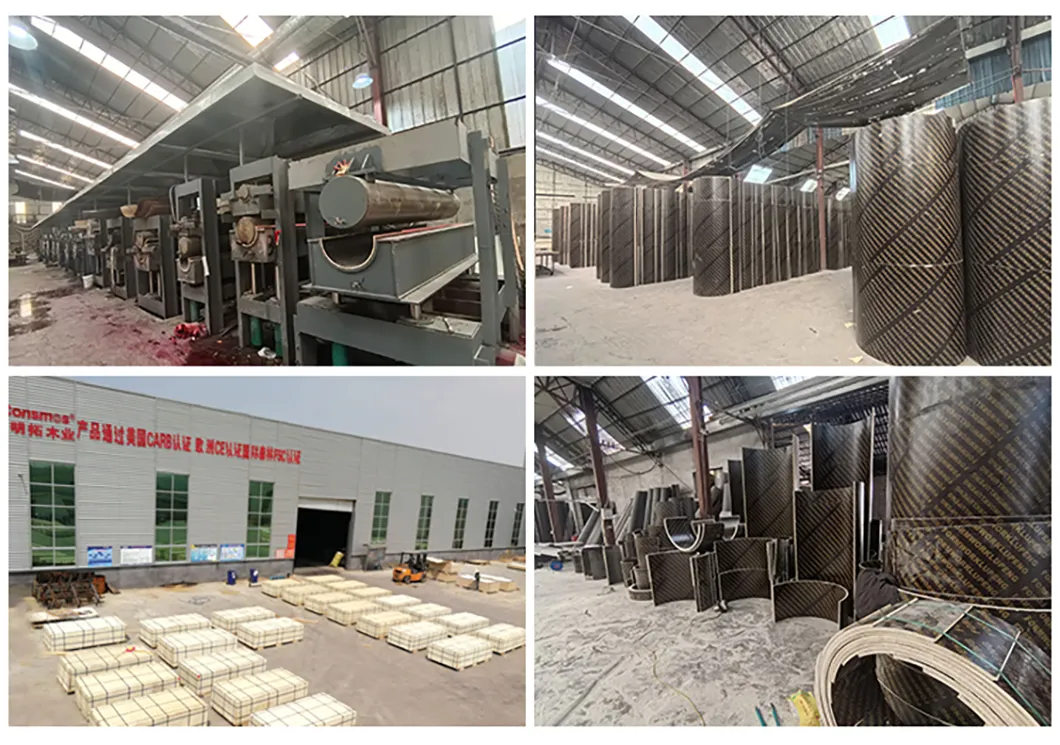

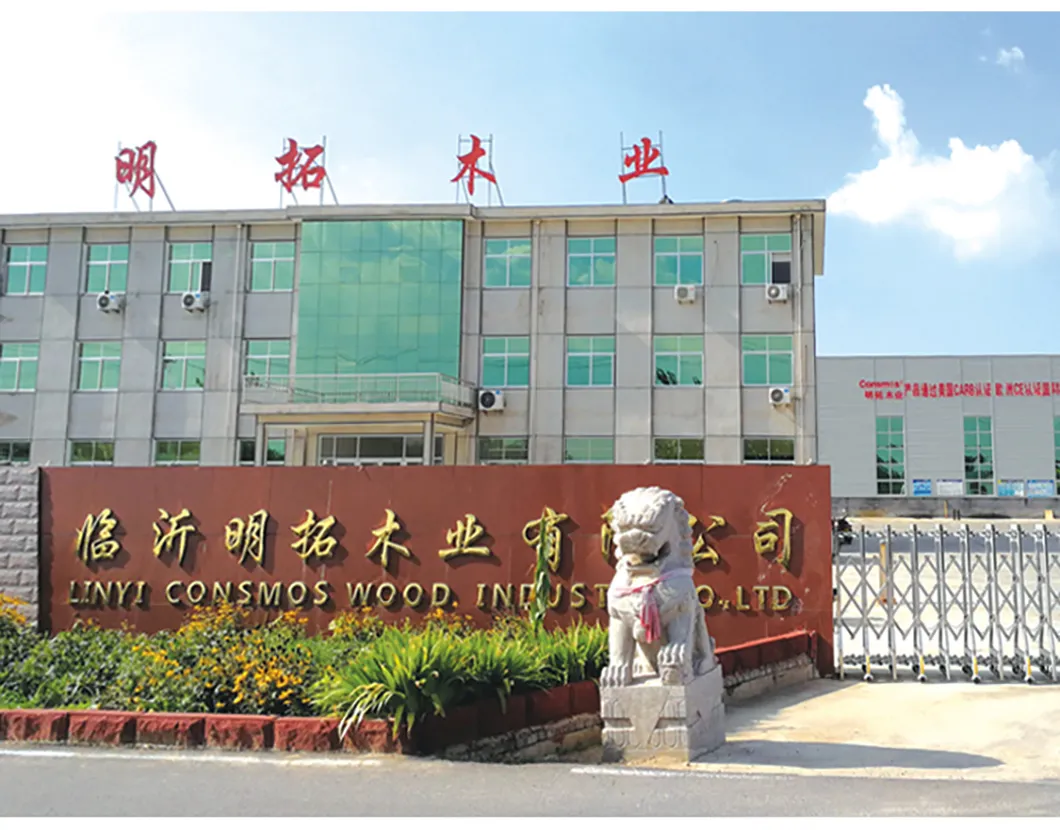

Production Material Factory
📦

Packaging & Shipping

Packaging Details:
1) Inner packing: Inside pallet is wrapped with a 0.20mm plastic bag.
2) Outer packing: Pallets are covered with 2mm package plywood or carton and then steel tapes for strengthening.

Delivery Time: 7~20 working days after payment.

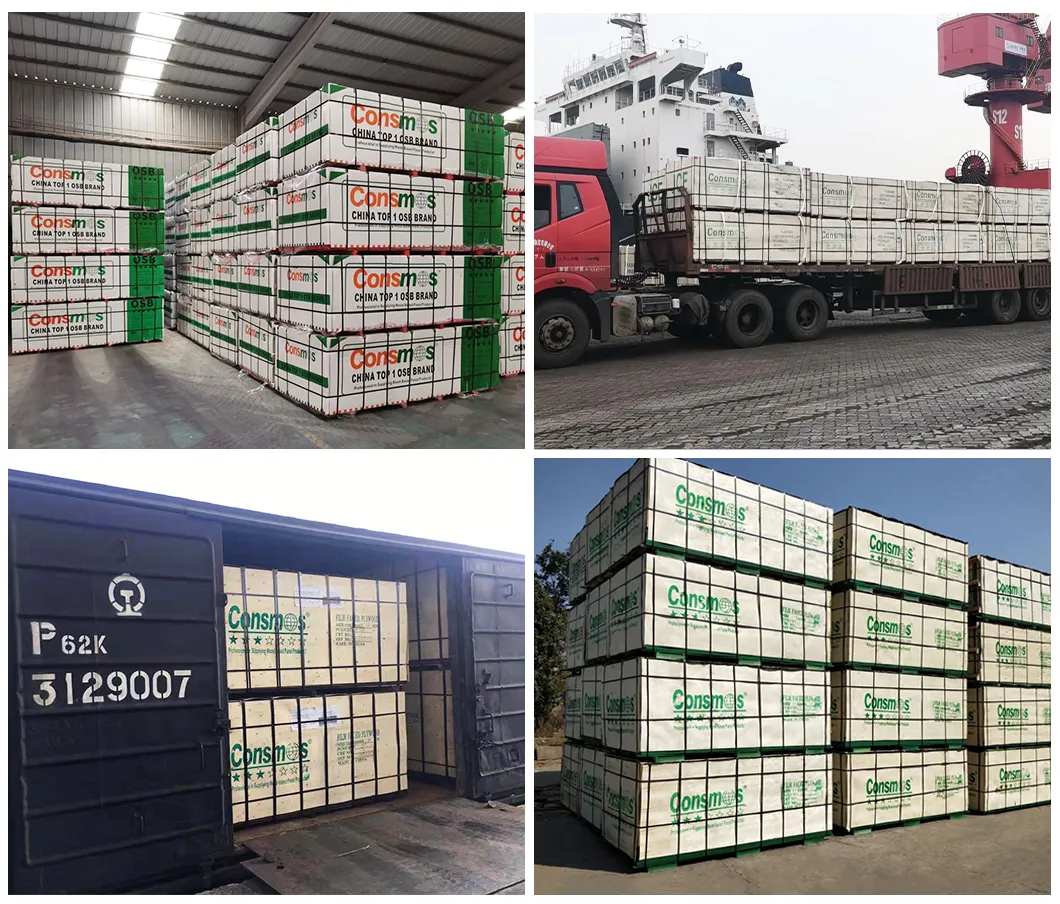

Shipping
📜

Certifications & Exhibition

Certificates Exhibition

Frequently Asked Questions

1. How can we guarantee quality?
We always provide a pre-production sample before mass production and conduct a final inspection before shipment.
2. What products can you buy from us?
You can purchase 100% Birch Plywood, Film faced plywood, OSB2/3/4, Commercial plywood, and Melamine plywood.
3. Why should you choose us over other suppliers?
We have more than 10 years of experience in production and export with CARB EPA, CE, FSC, and EUTR certificates.
4. What are the advantages of the cylindrical wood formwork?
It features a unique concave-convex groove design for tight joints, preventing slurry leakage and ensuring smooth concrete surfaces.
5. What payment and delivery terms are accepted?
We accept FOB, CFR, CIF, EXW, and more. Payments can be made via T/T, L/C, D/P, or Western Union in USD, EUR, or RMB.
6. What materials are used in the construction of the formwork?
The formwork primarily uses high-quality birch and poplar wood bonded with high-grade phenolic glue.
